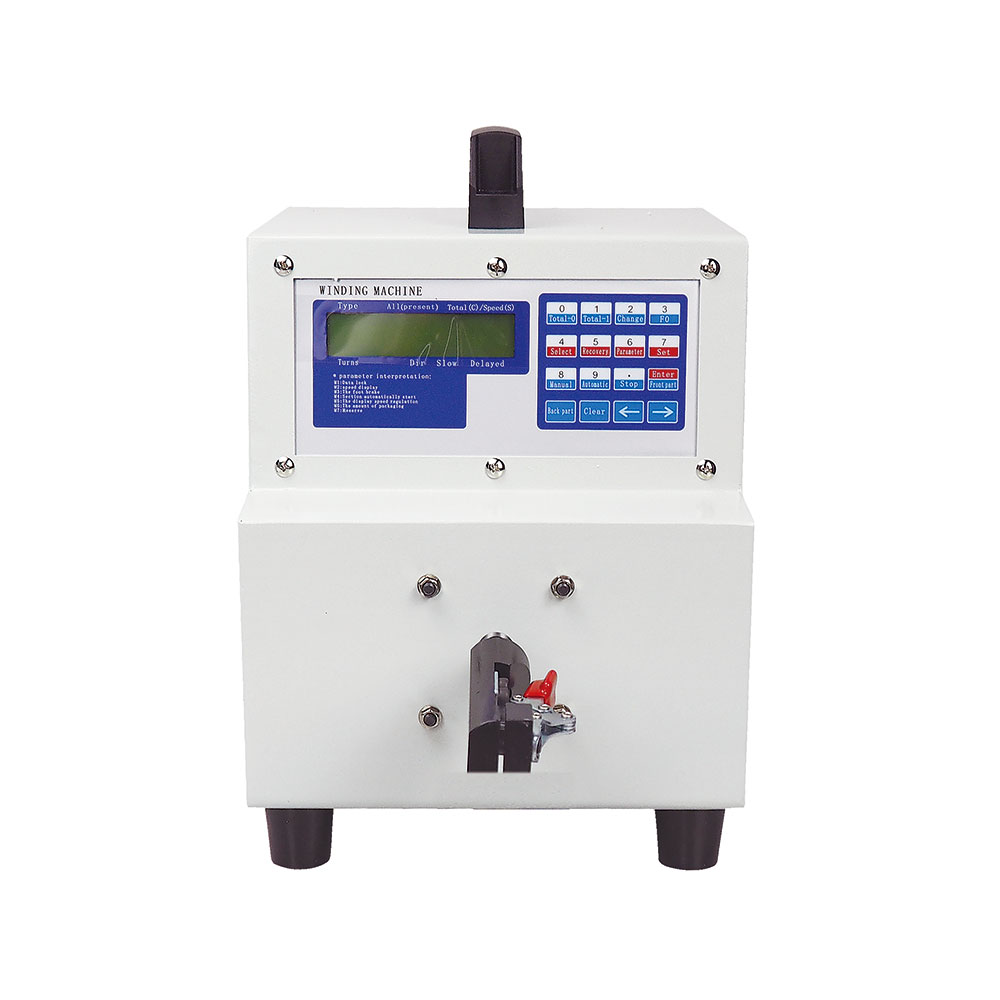

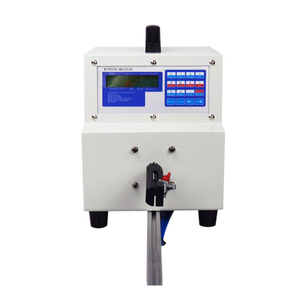

PT-001 Single-Axis & PT-005 Five-Axis Wire Stranding Machines
These wire stranding machines are ideal for twisting paired wires used in computer cables, automotive cables, LCD display cables, and more. With the ability to strand 1-5 wire harnesses simultaneously, they ensure consistent output, stable quality, and exceptional operational efficiency.
Key Features:
1. Adjustable Twisting Parameters: Allows customization of twisting speed, duration, and coil count to suit various wire specifications.
2, Data Protection: Features a robust data-saving mechanism, enabling permanent storage of set parameters.
3. Forward & Reverse Settings: Supports forward and reverse twisting, with an automatic wire twist count function for precise operation.
4. Secure Clamping System: Ensures firm grip without damaging wires, providing effortless manual operation and quick release.
5. High Efficiency: Delivers fast starts and high-speed operation with the ability to brake immediately at high speeds. Adjustable slow-start options (0-9 levels) prevent tension issues when handling thin wires.
6. Maintenance-Free Design: Utilizes advanced electronic braking, eliminating mechanical wear components like carbon brushes, belts, and electromagnetic brakes.
7. Low Noise & Torque Stability: Operates with minimal noise while maintaining consistent torque across all speeds.
8. Post-Winding Features: Equipped with production-ready functionalities to streamline the manufacturing process.
| Model | PT-001 | PT-005 |
| Axis number | 2 axis | 5 axis |
| Maximum wire diameter | 1.2mm | 1.2mm |
| Twisting length | 50-800mm | 50-800mm |
| Main shaft direction | Positive and negative reversible | Positive and negative reversible |
| Number of twisted coils | 0.5 – 9999.9 | 0.5 – 9999.9 |
| Spindle speed | 300-7500 adjustment | 300-7500 adjustment |
| Speed rate | 1500pcs/H | 1500pcs/H |
| Winding process | 20 kinds | 20 kinds |
| Number of storage items | 99types | 99types |
| Power supply | AC220V/AC110V | AC220V/AC110V |
| Power | 60W | 60W |
| Dimension | 36*31*35cm | 36*31*35cm |
| Weight | 10kg | 10kg |
Application
The PT-001 and PT-005 are wire stranding machines for twisting paired wires used in computer cables, automotive cables, and LCD display cables, with 2-axis and 5-axis configurations respectively.
PT-001: 2-axis, PT-005: 5-axis. Max wire diameter: 1.2mm. Twisting length: 50-800mm. Spindle speed: 300-7500 adjustment. Production rate: 1500pcs/h. Power: AC220V/AC110V, 60W. Dimensions: 36*31*35cm, weight: 10kg.
Key features include forward/reverse twisting with automatic twist count, maintenance-free electronic braking (no carbon brushes/belts), adjustable slow-start (0-9 levels) to prevent tension issues, low noise operation, and 20 winding processes with 99 storage items.
Both models require AC220V/AC110V power (60W) and share dimensions of 36*31*35cm, weighing 10kg. They are compact benchtop units.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
