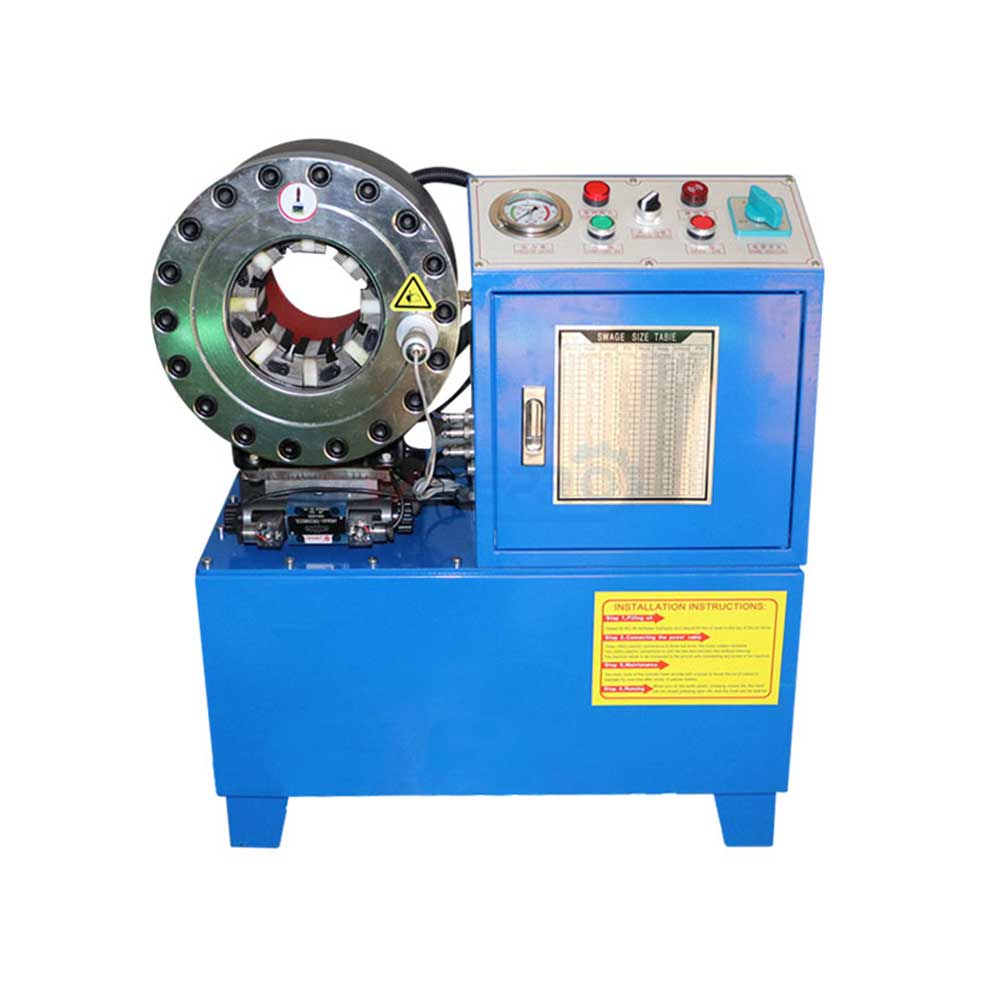

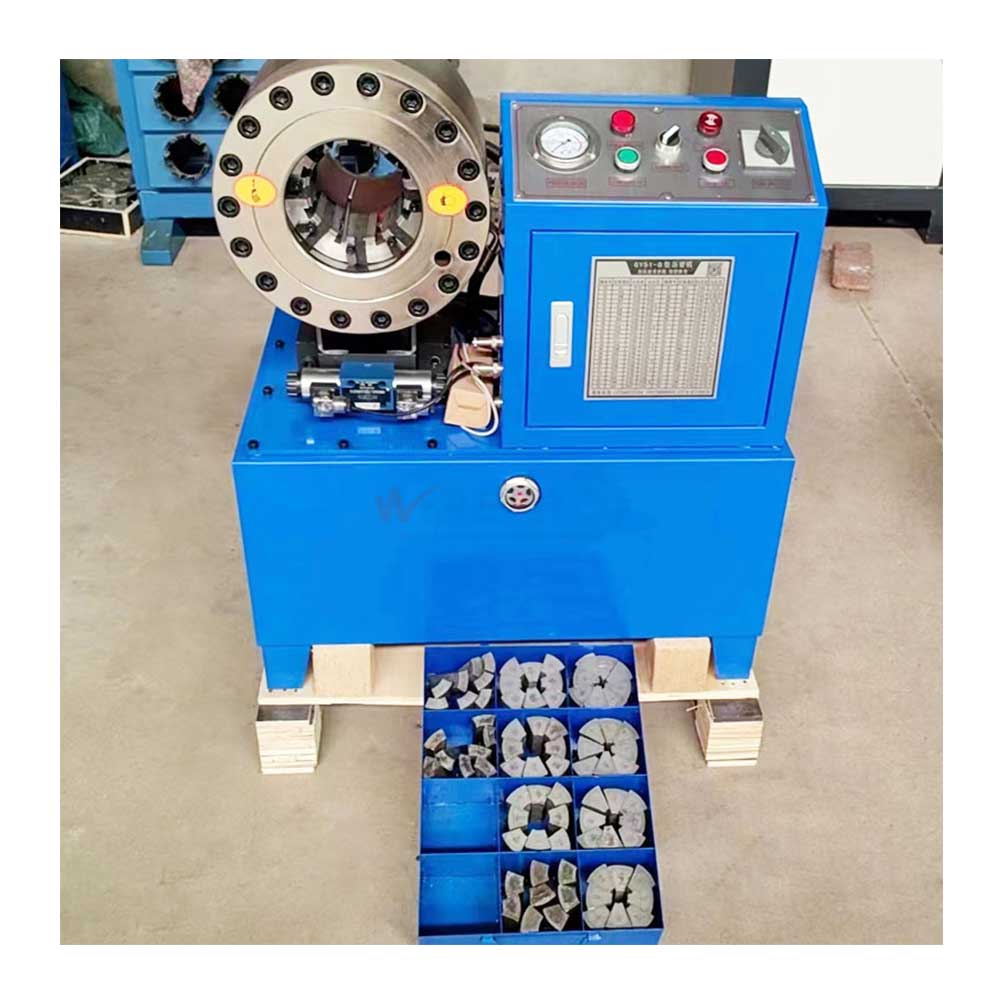

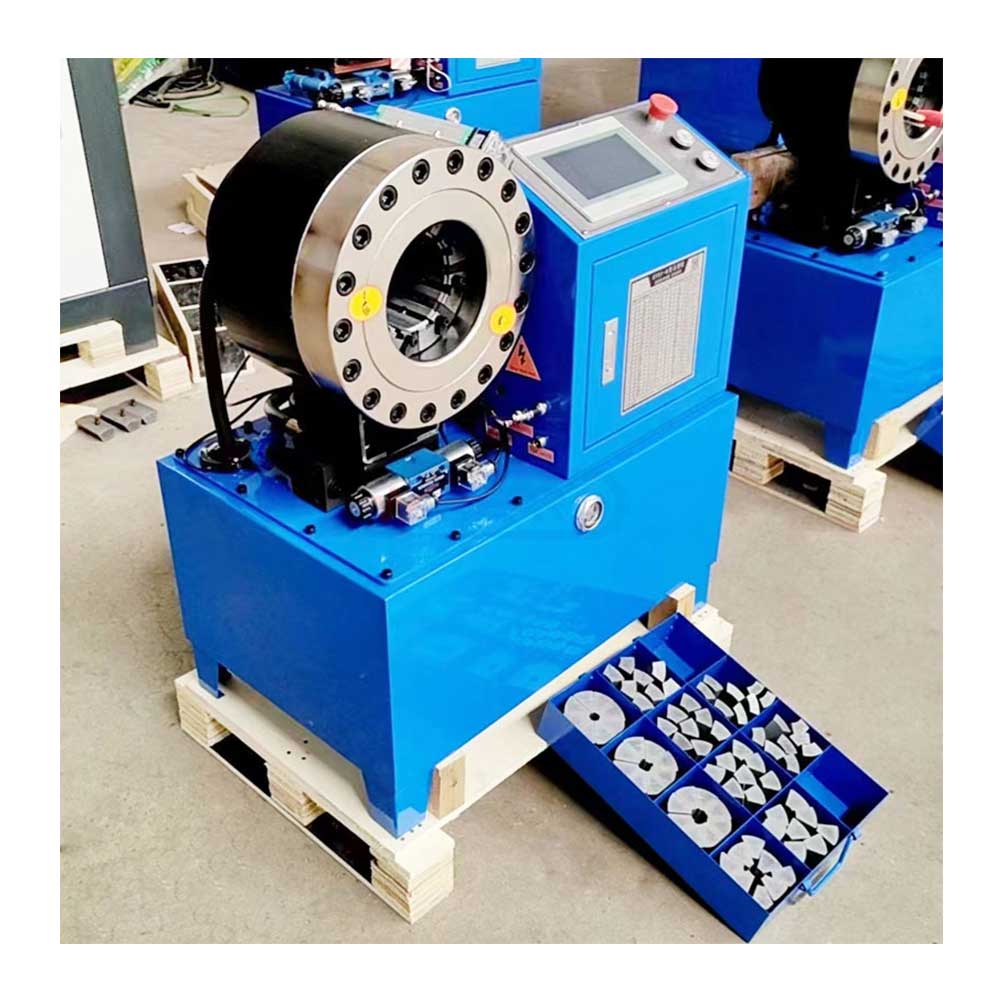

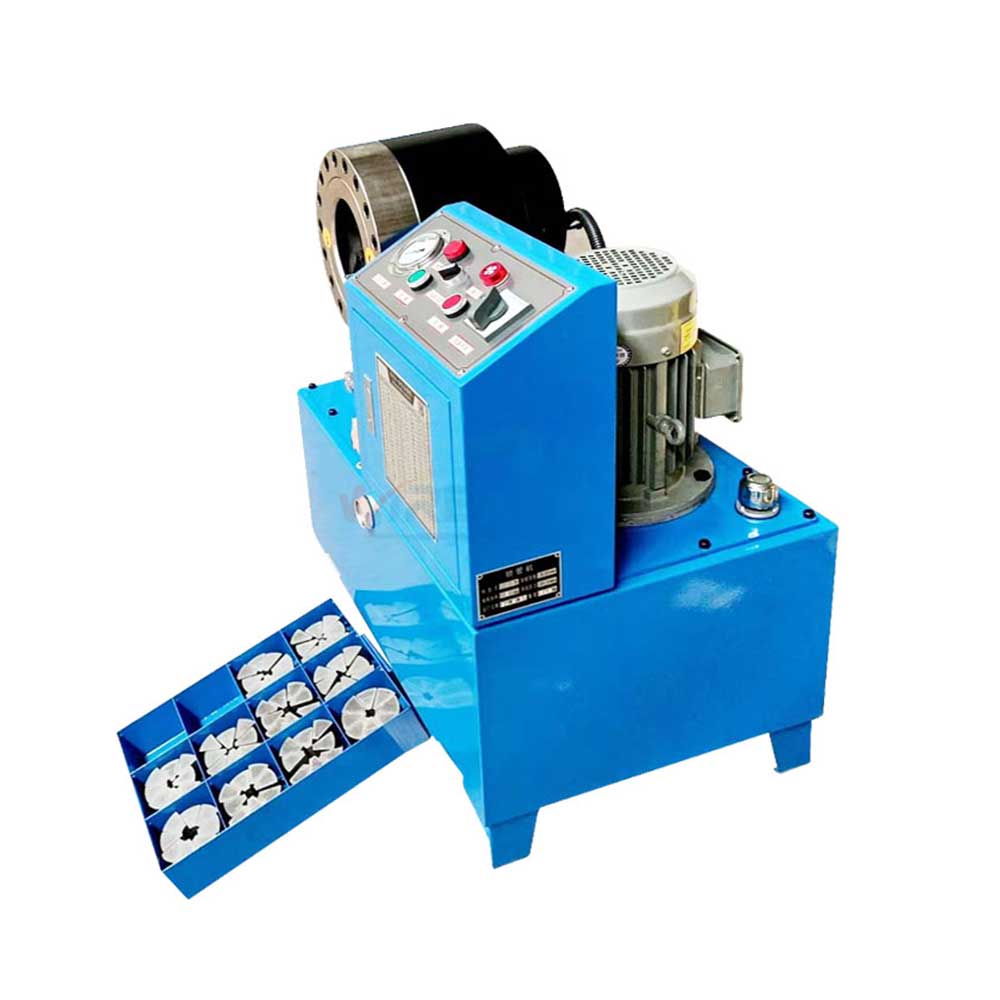

TH-051 Hose Crimping Machine
The TH-051 Hose Crimping Machine is engineered for high-pressure rubber hose assemblies in mechanical engineering applications. It also excels at crimping two-way bends, including large and irregularly shaped fittings.
Compact, portable, and powerful, this machine operates with low noise and user-friendly controls. Crimping pressure is precisely adjustable via a calibrated scale, while the double-inclined eight-flange mold seat—equipped with a high-precision guiding system—ensures uniform mold distribution.
Key Features:
1. Forged Steel Machine Head: Superior durability compared to standard steel.
2. CNC Control Panel: Intuitive interface for effortless operation.
3. Precision CNC System: Achieves crimping accuracy within ±0.01mm.

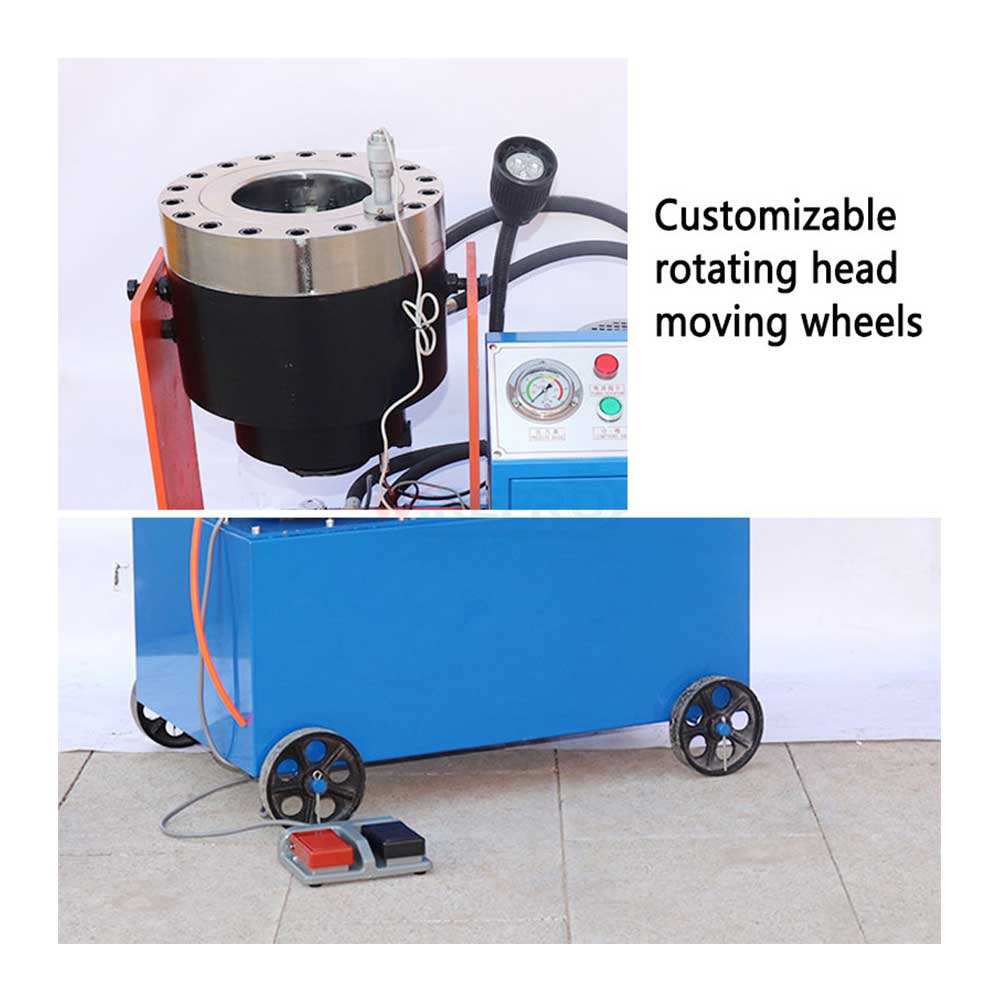

4. Foot Pedal Control: Enables hands-free operation for efficiency.
5. Patented Magnetic Dies: Quick and easy die changes.
Combining robust construction, pinpoint accuracy, and operator convenience, the TH-051 is the ideal solution for high-pressure hose crimping tasks.
| Model | TH-A51 |
| Hose size | 6-51mm |
| Max opening | 115mm |
| Crimping pressure | 450T |
| Dies sets | 10 sets |
| Ruler precision | 0.01mm |
| System pressure | 31.5Mpa |
| Power | 3KW |
| Power supply | 220V/380V/110V |
| Open-Close time | 30S 20S |
| Weight | 260kg |
| Dimension | 73*47*86cm |
Application
The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.
The TH-A51 is a hydraulic hose pressing and crimping machine designed for high-pressure rubber hose assemblies and two-way bends, including large and irregularly shaped fittings in mechanical engineering applications.
It handles hose sizes from 6-51mm with a maximum opening of 115mm. It delivers 450 tons of crimping pressure with 0.01mm precision, includes 10 die sets, and operates with system pressure of 31.5MPa.
Key features include a forged steel machine head for superior durability, CNC control panel with ±0.01mm precision, patented magnetic dies for quick die changes, foot pedal control for hands-free operation, and a double-inclined eight-flange mold seat for uniform crimping.
The TH-A51 requires 220V/380V/110V power (3KW) and has dimensions of 73*47*86cm, weighing 260kg. It has open-close times of 30S and 20S, requiring dedicated floor space.
The machine includes 10 die sets and features patented magnetic dies for quick and easy die changes. Crimping pressure is precisely adjustable via a calibrated scale, and the double-inclined eight-flange mold seat ensures uniform mold distribution.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
