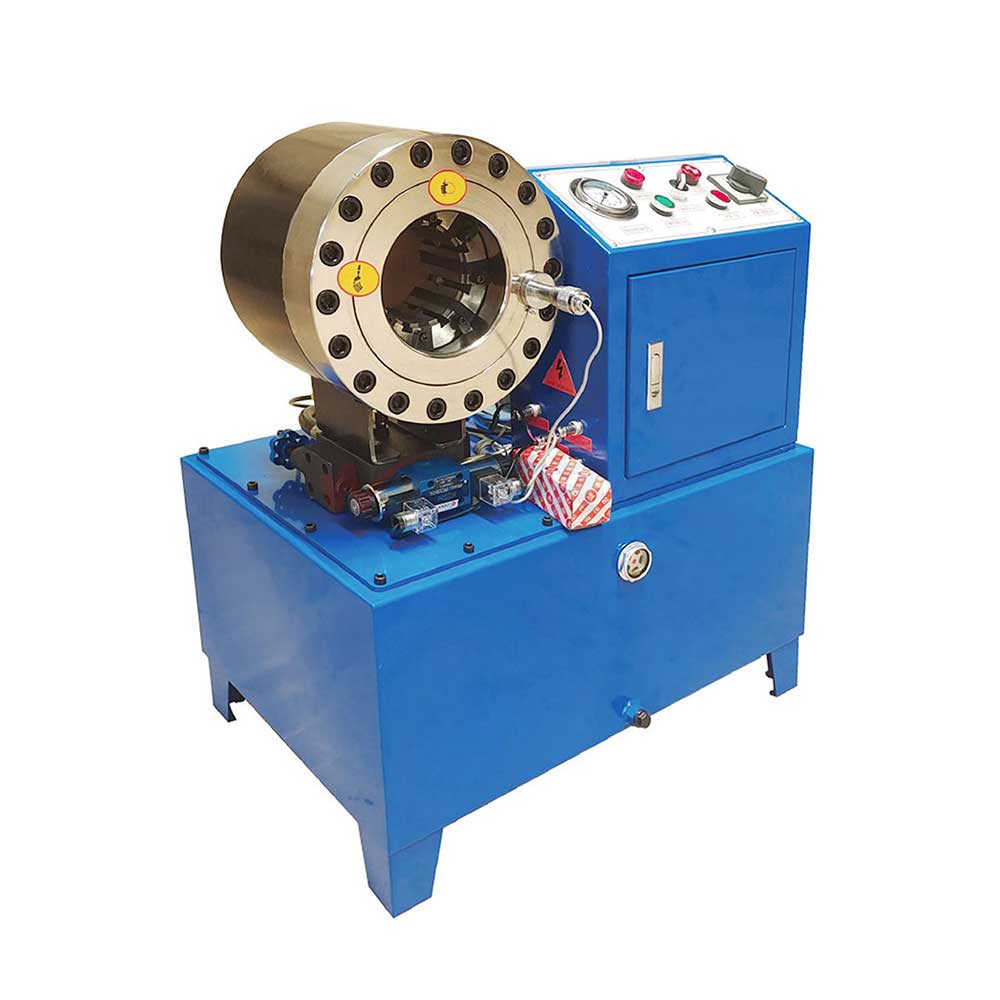

TH-A76
| Availability: | |
|---|---|
| Quantity: | |
Designed for professional applications, this crimping machine combines a compact, portable form factor with exceptional power and quiet operation. Its user-friendly design features precise crimping adjustment via a calibrated scale, while the innovative double-inclined eight-flange mold seat with high-precision guidance ensures perfectly uniform crimp distribution.
Key Features:
1. Heavy-Duty Forged Steel Head：Superior strength and longevity compared to standard steel construction
2. Intuitive CNC Control Panel: Simplified operation for maximum efficiency
3. Precision CNC System: Delivers consistent crimping accuracy within ±0.01mm tolerance
4. Convenient Foot Pedal: Enables hands-free operation when needed
5. Patented Magnetic Die System: Quick-change design minimizes setup time
Engineered for demanding industrial applications, the TH-051 offers the perfect balance of rugged durability, exacting precision, and operator-friendly features - making it the ideal choice for high-pressure rubber hose assembly requirements.
| Model | TH-A76 | TH-A102 | TH-150 |
| Hose size | 6-76mm | 6-102mm | 1/4-6inch |
| Max opening | 156mm | 200mm | 230mm |
| Crimping pressure | 650T | 800T | 900T |
| Dies sets | 14 sets | 17sets | 20sets |
| Ruler precision | 0.01mm | 0.01mm | 0.01mm |
| System pressure | 31.5Mpa | 31.5Mpa | 31.05Mpa |
| Power | 4KW | 4KW | 5.5KW |
| Power supply | 220V/380V/110V | 220V/380V/110V | 220V/380V/ |
| Open-Close time | 12S | 13S | 15S |
| Weight | 360kg | 590kgs | 880kgs |
| Dimension | 73*47*95cm | 88*52*102cm | 100*60*114cm |
Application
The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.
The TH-A76, TH-A102, and TH-A150 are hydraulic crimping machines for hoses and pipes, designed for professional applications in industrial hose assembly. They deliver 650T, 800T, and 900T crimping pressure respectively.
TH-A76: 6-76mm, 156mm opening, 14 dies; TH-A102: 6-102mm, 200mm opening, 17 dies; TH-A150: 1/4-6 inch, 230mm opening, 20 dies. All achieve ±0.01mm precision with 31.5MPa system pressure.
Key features include heavy-duty forged steel heads for durability, CNC control panels with ±0.01mm precision, patented magnetic die systems for quick changeovers, foot pedal controls for hands-free operation, and double-inclined eight-flange mold seats for uniform crimping.
TH-A76: 4KW, 73*47*95cm, 360kg; TH-A102: 4KW, 88*52*102cm, 590kg; TH-A150: 5.5KW, 100*60*114cm, 880kg. All support 220V/380V/110V with open-close times of 12S, 13S, and 15S.
The patented magnetic die system enables quick and easy die changes. Crimping pressure is precisely adjustable via a calibrated scale, and the double-inclined eight-flange mold seat ensures uniform distribution for consistent results.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
