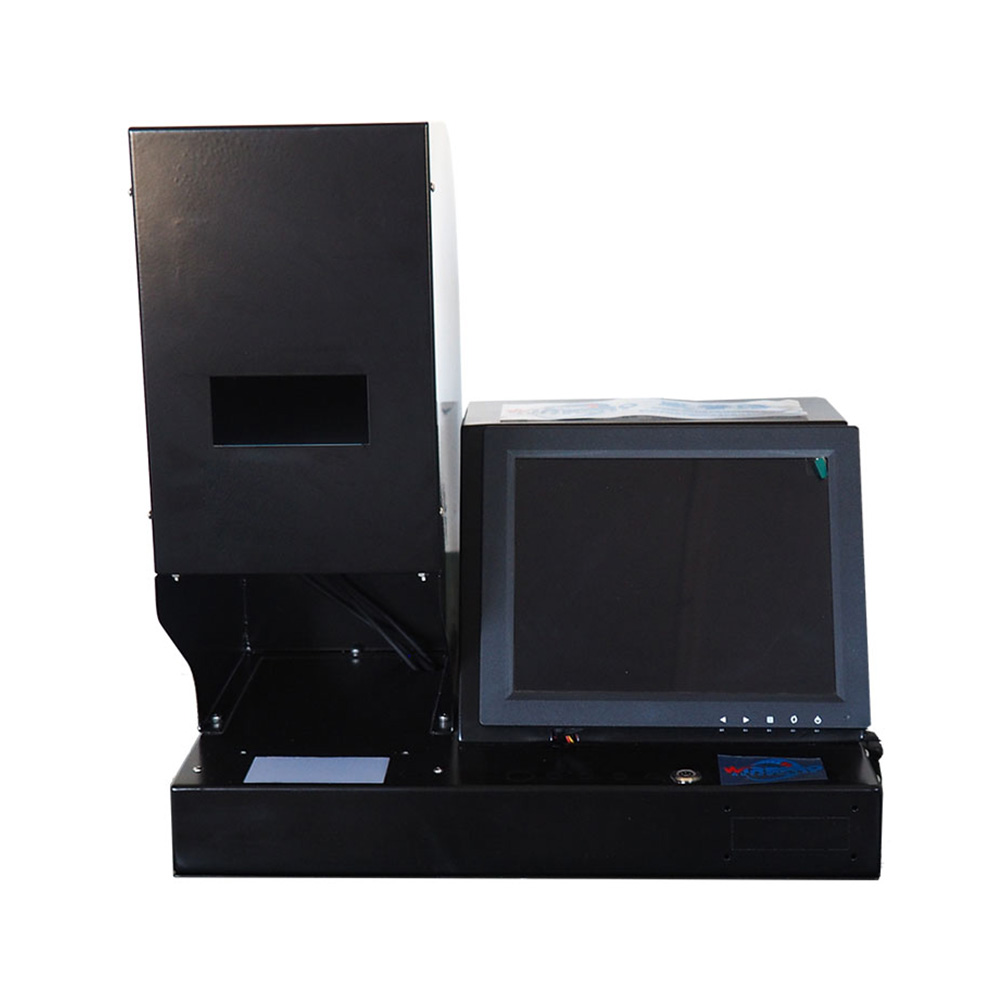

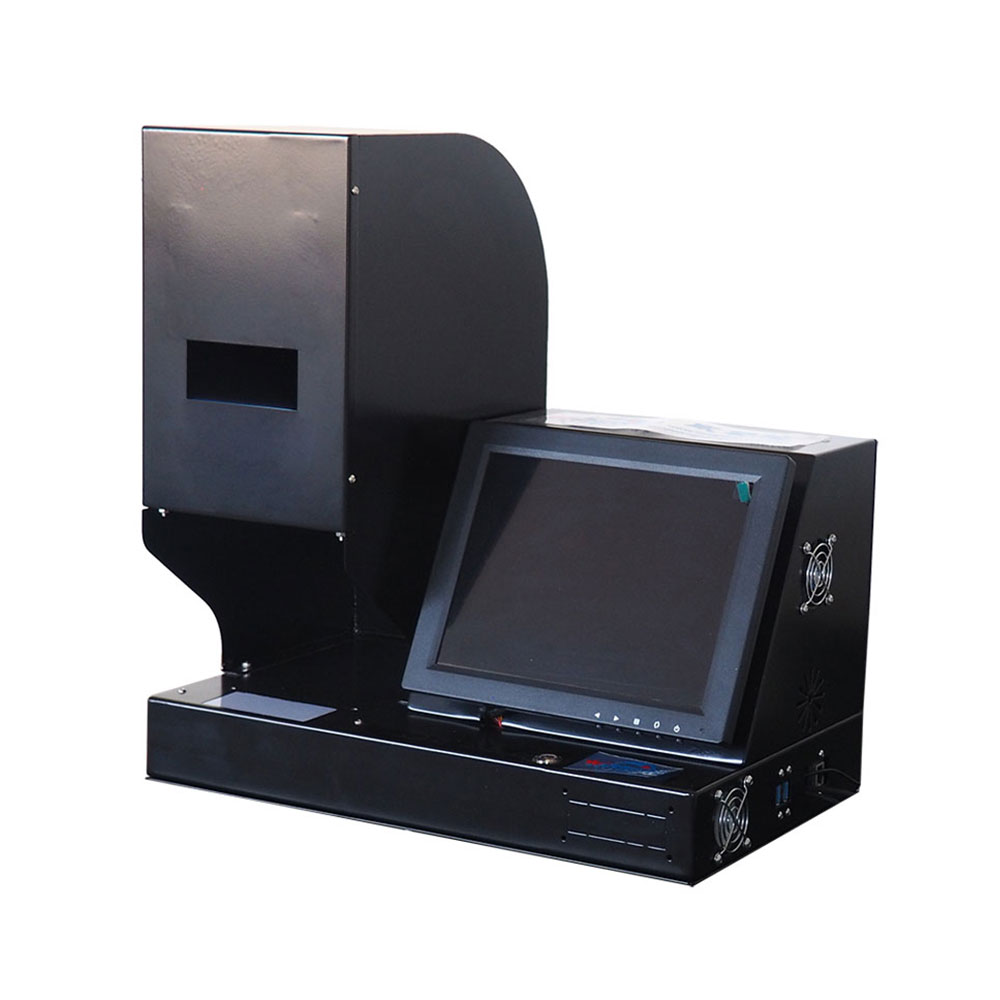

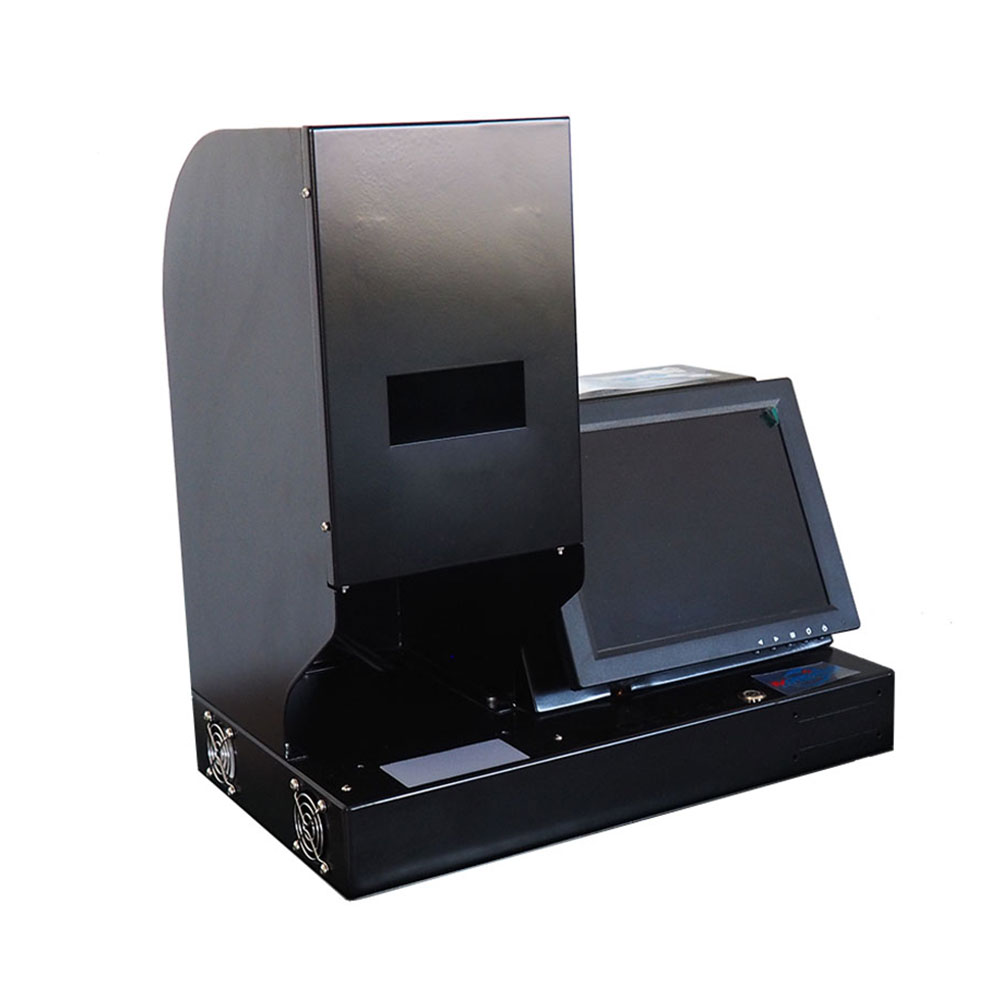

HT-WS5
| Availability: | |
|---|---|
| Quantity: | |
Ensuring accurate wiring sequences in terminal connectors is crucial, yet manual inspection can lead to errors due to eye fatigue. The wire sequence inspecting device leverages advanced vision technology and intelligent algorithms to automatically verify compliance with preset standards. It identifies harness colors, marks outputs, and ensures 100% accuracy in wiring sequences.
Key Features:
1. Optional Connectivity Testing and Marking: Flexible options to meet varied testing needs.
2. Free Placement of Connectors: The device allows connectors to be placed front or back without positional restrictions, automatically detecting wire sequences.
3. Fast, Automatic Operation: Testing begins automatically when the wire is placed in the detection area, delivering results in just 0.2 seconds without manual switching.
4. Comprehensive Error Detection: Automatically identifies wire colors and sequence, detects incorrect or misplaced terminals, highlights the error location, and provides audible alerts.
5. Superior Anti-Interference Capability: Accurately tests wires even with surface characters or color rings without any impact.
Model | HT-WS5 |
House connector width | Max 50mm |
Row of house connector | Single row |
Power supply | 220V |
Power | 35W |
Dimensions | 43x26x38cm |
Weight | 9kg |
The HT-WS5 is a wire harness sequence testing system using vision technology and intelligent algorithms to automatically verify wiring sequences and color matching in terminal connectors with 100% accuracy.
Connector width: max 50mm. Row type: single row. Power: 220V, 35W. Dimensions: 43x26x38cm, weight: 9kg. Test time: 0.2 seconds per wire.
Key features include automatic 0.2-second testing, free connector placement (front/back without positional restrictions), comprehensive error detection with audible alerts, superior anti-interference (handles printed characters and color rings), and optional connectivity testing.
The HT-WS5 requires 220V power (35W) and has dimensions of 43x26x38cm, weighing 9kg. It is a compact benchtop unit.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
