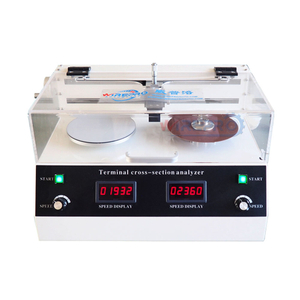

The terminal section analyzer is a high-precision detection and analysis tool designed for wire harness quality inspection. The system includes terminal cutting equipment, grinding machinery, a corrosion cleaning section, an image acquisition system, and a wire harness terminal measurement and analysis unit.
This analyzer can complete a full analysis in just 5 minutes, greatly improving testing efficiency.
User-friendly and easy to operate, the machine features a high-quality image acquisition system that provides accurate measurement and analysis.
Key Features:
1. High-Performance Microscopes & Software: Effortlessly measures length and calculates area.
2. Ultra-High-Definition Imaging: Produces clear, three-dimensional images with a strong stereoscopic effect and wide observation range.
3. Precision Measurement System: Combines a high-quality optical system with high-resolution cameras to ensure clear and accurate cross-sectional images.
Model | HT-S50 |
Applicable wire range | 0.01mm²~30mm² (Optional 0.01mm²~120mm²) |
Cutting speed | 0-4000 rpm/min |
Cut disk | Φ150X0.5mm |
Abrasive paper for metallographic | 1200# |
Precision | 0.001mm |
Terminal corrosion | Liquid cleaning |
Lighting source | All white adjustable LED lighting device |
Power supply | 220V |
Power | 280W |
Weight | About 40kg |
Dimensions | 45*33*30cm |
The HT-S50 is a terminal cutting section measurement system for wire harness quality inspection, integrating cutting, grinding, cleaning, imaging, and measurement in one unit with 5-minute complete analysis.
Wire range: 0.01-30mm² (optional 0.01-120mm²). Cutting speed: 0-4000 rpm. Precision: 0.001mm. Cut disk: Φ150X0.5mm. Power: 220V, 280W. Dimensions: 45*33*30cm, weight: about 40kg.
Key features include high-performance microscopes with specialized software, ultra-high-definition 3D imaging, precision measurement system with high-quality optics and cameras, and complete 5-minute analysis cycle.
The HT-S50 requires 220V power (280W) and has dimensions of 45*33*30cm, weighing about 40kg. It is a compact benchtop unit.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
