HT-S33
| Availability: | |
|---|---|
| Quantity: | |

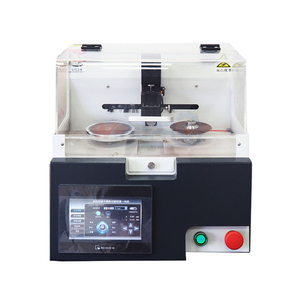

Terminal Section Analyzer for Wire Harness Quality Inspection
The terminal section analyzer is a high-precision detection and analysis tool, specifically designed for wire harness quality control. This comprehensive system includes terminal cutting equipment, grinding machines, a corrosion cleaning section, an image acquisition system, and a wire harness terminal measurement and analysis system.
With the ability to complete an analysis in just 5 minutes, this analyzer significantly enhances testing efficiency.
The machine is user-friendly and features a high-quality image acquisition system, offering precise measurement and analysis capabilities.
Key Features:
1. High-Performance Microscopes & Software: Simplifies the measurement of length and area calculation.
2. Ultra-High-Definition Imaging: Provides three-dimensional, clear, and wide imaging with strong depth and clarity.
3. High-Precision Measurement System: Combines a high-resolution optical system and specialized cameras for clearer, more accurate cross-section images.
Model | HT-S33 |
Applivable wire range | 0.01mm²~120mm² |
Cutting speed | 0-4000 rpm/min |
Cut disk | Φ150X0.5mm |
Abrasive paper for metallographic | 1200# |
Precision | 0.001mm |
Terminal corrosion | Liquid cleaning |
Lighting source | All white adjustable LED lighting device |
Power supply | 220V |
Power | 180W |
Weight | About 30kg |
Dimensions | 45*33*30cm |
The HT-S33 is a terminal cross-section analysis inspection system for wire harness quality control, integrating cutting, grinding, cleaning, imaging, and measurement in one unit for 5-minute complete analysis.
Wire range: 0.01-120mm². Cutting speed: 0-4000 rpm. Precision: 0.001mm. Cut disk: Φ150X0.5mm. Power: 220V, 180W. Dimensions: 45*33*30cm, weight: about 30kg.
Key features include high-performance microscopes with specialized measurement software, ultra-high-definition 3D imaging with strong depth and clarity, high-precision measurement system with high-resolution optics, and complete 5-minute analysis cycle.
The HT-S33 requires 220V power (180W) and has dimensions of 45*33*30cm, weighing about 30kg. It is a compact benchtop unit.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
