HT-S33
| Availability: | |
|---|---|
| Quantity: | |

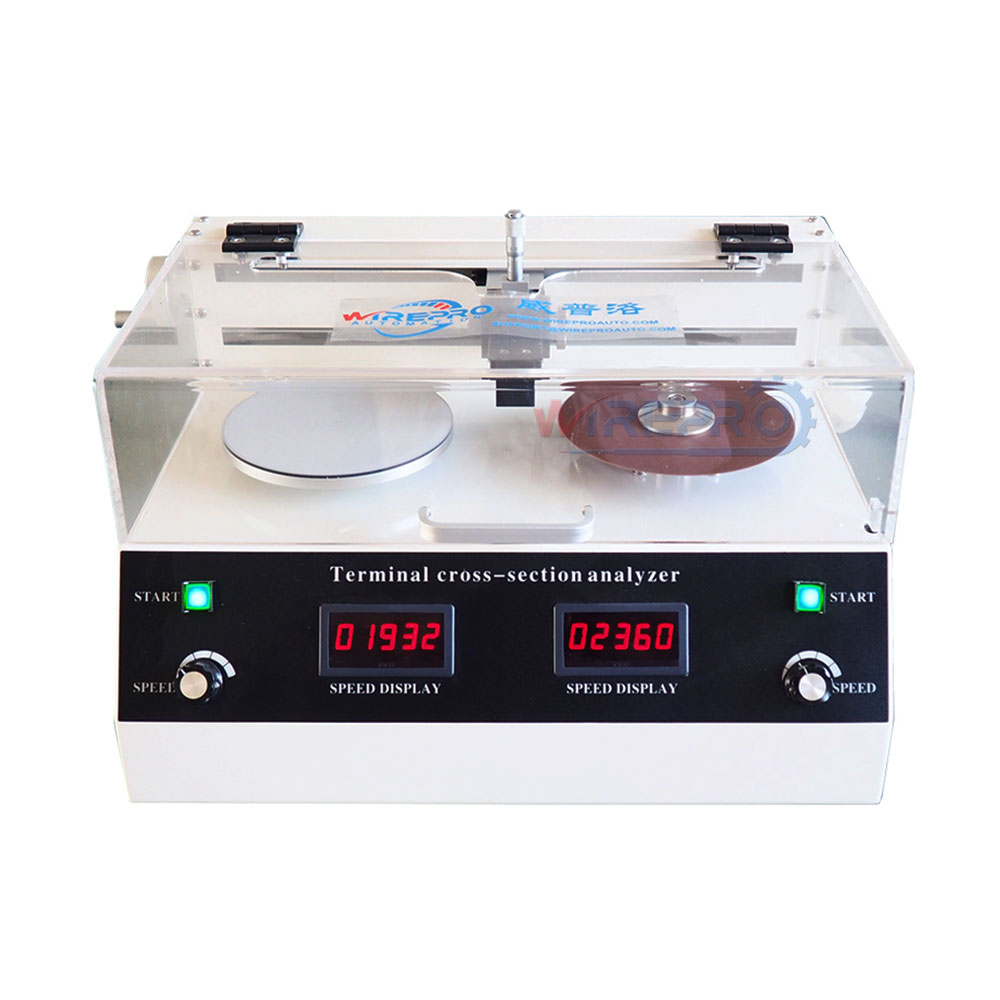

Terminal Section Analyzer for Wire Harness Quality Inspection
The terminal section analyzer is a high-precision detection and analysis tool, specifically designed for wire harness quality control. This comprehensive system includes terminal cutting equipment, grinding machines, a corrosion cleaning section, an image acquisition system, and a wire harness terminal measurement and analysis system.
With the ability to complete an analysis in just 5 minutes, this analyzer significantly enhances testing efficiency.
The machine is user-friendly and features a high-quality image acquisition system, offering precise measurement and analysis capabilities.
Key Features:
1. High-Performance Microscopes & Software: Simplifies the measurement of length and area calculation.
2. Ultra-High-Definition Imaging: Provides three-dimensional, clear, and wide imaging with strong depth and clarity.
3. High-Precision Measurement System: Combines a high-resolution optical system and specialized cameras for clearer, more accurate cross-section images.
Terminal Section Analyzer for Wire Harness Quality Inspection
The terminal section analyzer is a high-precision detection and analysis tool, specifically designed for wire harness quality control. This comprehensive system includes terminal cutting equipment, grinding machines, a corrosion cleaning section, an image acquisition system, and a wire harness terminal measurement and analysis system.
With the ability to complete an analysis in just 5 minutes, this analyzer significantly enhances testing efficiency.
The machine is user-friendly and features a high-quality image acquisition system, offering precise measurement and analysis capabilities.
Key Features:
1. High-Performance Microscopes & Software: Simplifies the measurement of length and area calculation.
2. Ultra-High-Definition Imaging: Provides three-dimensional, clear, and wide imaging with strong depth and clarity.
3. High-Precision Measurement System: Combines a high-resolution optical system and specialized cameras for clearer, more accurate cross-section images.
Model | HT-S33 |
Applivable wire range | 0.01m㎡~120m㎡ |
Cutting speed | 0-4000 rpm/min |
Cut disk | Φ150X0.5mm |
Abrasive paper for metallographic | 1200# |
Precision | 0.001mm |
Terminal corrosion | Liquid cleaning |
Lighting source | All white adjustable LED lighting device |
Power supply | 220V |
Power | 180W |
Weight | About 30kgs |
Dimensions | 45*33*30cm |
Model | HT-S33 |
Applivable wire range | 0.01m㎡~120m㎡ |
Cutting speed | 0-4000 rpm/min |
Cut disk | Φ150X0.5mm |
Abrasive paper for metallographic | 1200# |
Precision | 0.001mm |
Terminal corrosion | Liquid cleaning |
Lighting source | All white adjustable LED lighting device |
Power supply | 220V |
Power | 180W |
Weight | About 30kgs |
Dimensions | 45*33*30cm |
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
MORE SERVICE:
1. Some size can custom
2. Free sample testing for standard machine
3. Standard machine will be ready in 3-5days
4. Dedicated after-sales service team
