CH-105
| Availability: | |
|---|---|
| Quantity: | |

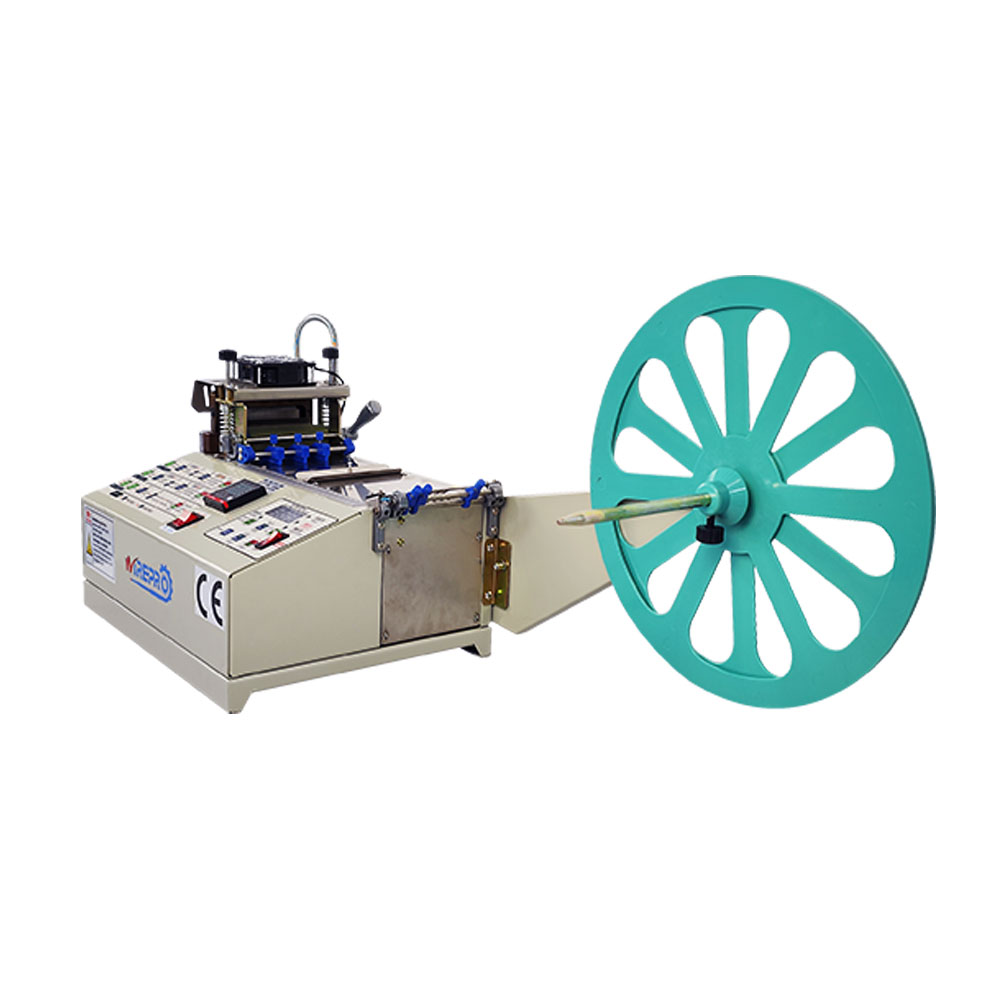

The fully automatic computer tape-cutting machine is a versatile hot and cold dual-purpose device, integrating electromechanical technology for efficient cutting of various materials.
Features:
1. Versatile Cutting: Capable of automatically cutting a wide range of materials, including expandable braided sleeving, hook-and-loop fasteners, plastic hoses, shoelaces, and more, with customizable widths and lengths.
2. Length Calibration: Equipped with a calibration function that ensures higher accuracy in cutting lengths, tailored to the specific material being processed.
3. Hot & Cold Cutting: Features an integrated heating device for sealing nylon braided and other types of nylon tapes. It offers both cold and hot cutting capabilities without needing to change the cutting tool.
4. Data Retention: Automatically saves all current settings before the machine is turned off, allowing for easy reuse of configurations the next time.
5. Automatic Stop: The machine halts operation automatically when no material is detected, ensuring efficient energy use.
This machine offers high precision, fast cutting speed, clean cross-sections, and user-friendly operation, making it the ideal choice for boosting production efficiency, enhancing product quality, and reducing labor costs.
Model | CH-105 |
Application | Cold and hot cutting |
Available Width | 95mm |
Available Thickness | 12mm |
Cutting Length | 1-100000mm |
Length Tolerance | ±0.01*L ( based on cutting material) |
Knife | cold knife/hot blade (support max about 350℃） |
Power Supply | 220/110V,50/60Hz |
Power | 600W |
Speed | 120 pcs/min |
Dimensions | 40*35*45cm |
Weight | 25kg |
Application
The CH-105 is a versatile hot and cold dual-purpose cutting machine for expandable braided sleeving, hook-and-loop fasteners, plastic hoses, shoelaces, and various materials with customizable widths and lengths.
Material width: up to 95mm. Thickness: up to 12mm. Cutting length: 1-100000mm. Length tolerance: ±0.01*L. Cutting speed: 120 pcs/min. Power: 220/110V, 600W. Dimensions: 40*35*45cm, weight: 25kg.
Key features include integrated hot and cold cutting (up to 350°C) without tool changeover, length calibration for higher accuracy, automatic data retention, automatic stop when no material is detected, and clean cross-sections.
The CH-105 requires 220/110V, 50/60Hz power (600W) and has dimensions of 40*35*45cm, weighing 25kg. It is a compact benchtop unit.
It can cut expandable braided sleeving, hook-and-loop fasteners, plastic hoses, shoelaces, and various nylon braided materials. Hot cutting mode seals nylon edges while cutting.
Standard machines are ready in 3-5 workdays; customized orders require confirmation. The machine is shipped with a manual and video for self-installation. Technical support is available via phone, email, or video. Spare parts are sent via FedEx or DHL for fast delivery.
